Re: Foresttrooper's C3PO build


Holly crap you've been busy did you realise its Xmas lol bloody great work bud
12/29/2013, 6:47 pm Link to this post Send Email to Darthpedge   Send PM to Darthpedge Blog

Forest trooper Profile
Live feed
Blog
Friends
Miscellaneous info

Registered user

Registered: 11-2012
Posts: 92
Karma: 7 (+7/-0)
Reply | Quote
Re: Foresttrooper's C3PO build


thanks Darth, Xmas is well over now,family time was lovely and it was nice to get a bit of time to do stuff on the suit,

Shoulder bell hinges, still need to be glued and screwed but this will hopefully work quite well, aluminium washer at back of shoulder bell , hope to align this to the shoulder rings ,

Back plate on back section, I have spent quite a while trying to get the lines straight, and ensure the two parts sit flush,



Held on with two small 4mm allen bolts and two magnets,

Rear of plate has added fibreglass "teardop" holes,
12/30/2013, 1:02 pm Link to this post Send Email to Forest trooper   Send PM to Forest trooper Blog

Forest trooper Profile
Live feed
Blog
Friends
Miscellaneous info

Registered user

Registered: 11-2012
Posts: 92
Karma: 7 (+7/-0)
Reply | Quote
Re: Foresttrooper's C3PO build


The shoulder bells and rings are almost finished, lots of stuff to finish yet I have tried to ensure the hinge is a strong a connection as possible.






1/4/2014, 5:34 pm Link to this post Send Email to Forest trooper   Send PM to Forest trooper Blog

Forest trooper Profile
Live feed
Blog
Friends
Miscellaneous info

Registered user

Registered: 11-2012
Posts: 92
Karma: 7 (+7/-0)
Reply | Quote
Re: Foresttrooper's C3PO build


Chest greebliee made today,





1/11/2014, 1:35 pm Link to this post Send Email to Forest trooper   Send PM to Forest trooper Blog

Darthpedge Profile
Live feed
Blog
Friends
Miscellaneous info

Registered user

Registered: 02-2012
Location: UK
Posts: 323
Karma: 10 (+13/-3)
Reply | Quote
Re: Foresttrooper's C3PO build


Nice is there a dim for these or best guess next to ref pictures
1/13/2014, 9:24 am Link to this post Send Email to Darthpedge   Send PM to Darthpedge Blog

Forest trooper Profile
Live feed
Blog
Friends
Miscellaneous info

Registered user

Registered: 11-2012
Posts: 92
Karma: 7 (+7/-0)
Reply | Quote
Re: Foresttrooper's C3PO build


The size seems to be a guess for folks, I initially worked out approx 12.7mm x 12.7mm on a reference pic but have reduced this to 12mm x12mm. My reference pic showed a concave angled surface and a central indent so I went with that. I used am M4 thread to secure the greebliee to the chest.
1/13/2014, 1:35 pm Link to this post Send Email to Forest trooper   Send PM to Forest trooper Blog

GordonTarpley Profile
Live feed
Blog
Friends
Miscellaneous info

Registered user

Registered: 06-2011
Location: Tampa, FL
Posts: 303
Karma: 4 (+4/-0)
Reply | Quote
Re: Foresttrooper's C3PO build


7/16"

---
GT Props on Facebook
My C3PO blog
My Art

1/13/2014, 2:00 pm Link to this post Send Email to GordonTarpley   Send PM to GordonTarpley Blog

Forest trooper Profile
Live feed
Blog
Friends
Miscellaneous info

Registered user

Registered: 11-2012
Posts: 92
Karma: 7 (+7/-0)
Reply | Quote
Re: Foresttrooper's C3PO build


Cheers Gordon, close enough!

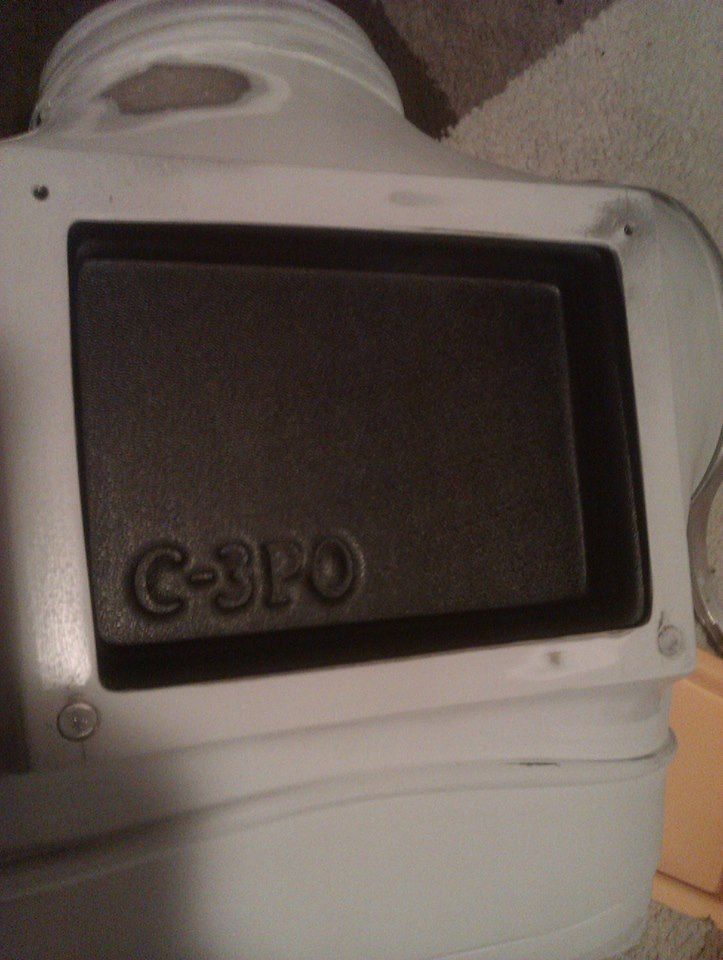

I vacformed a back box for my electrics , ABS pinseal black plastic, held in via the two bolts already fitted,

1/21/2014, 1:31 pm Link to this post Send Email to Forest trooper   Send PM to Forest trooper Blog

Darthpedge Profile
Live feed
Blog
Friends
Miscellaneous info

Registered user

Registered: 02-2012
Location: UK
Posts: 323
Karma: 10 (+13/-3)
Reply | Quote
posticon Re: Foresttrooper's C3PO build


Now your just showing off lol love the idea of the 3po logo. Any progress on the shorts emoticon
1/21/2014, 7:09 pm Link to this post Send Email to Darthpedge   Send PM to Darthpedge Blog

Forest trooper Profile
Live feed
Blog
Friends
Miscellaneous info

Registered user

Registered: 11-2012
Posts: 92
Karma: 7 (+7/-0)
Reply | Quote
Re: Foresttrooper's C3PO build


Thanks, the c3po "stamp" was for a bit of fun, because I could, btw it is in "droid serif" font emoticon

The shorts may be vacformed this weekend, if all goes well.

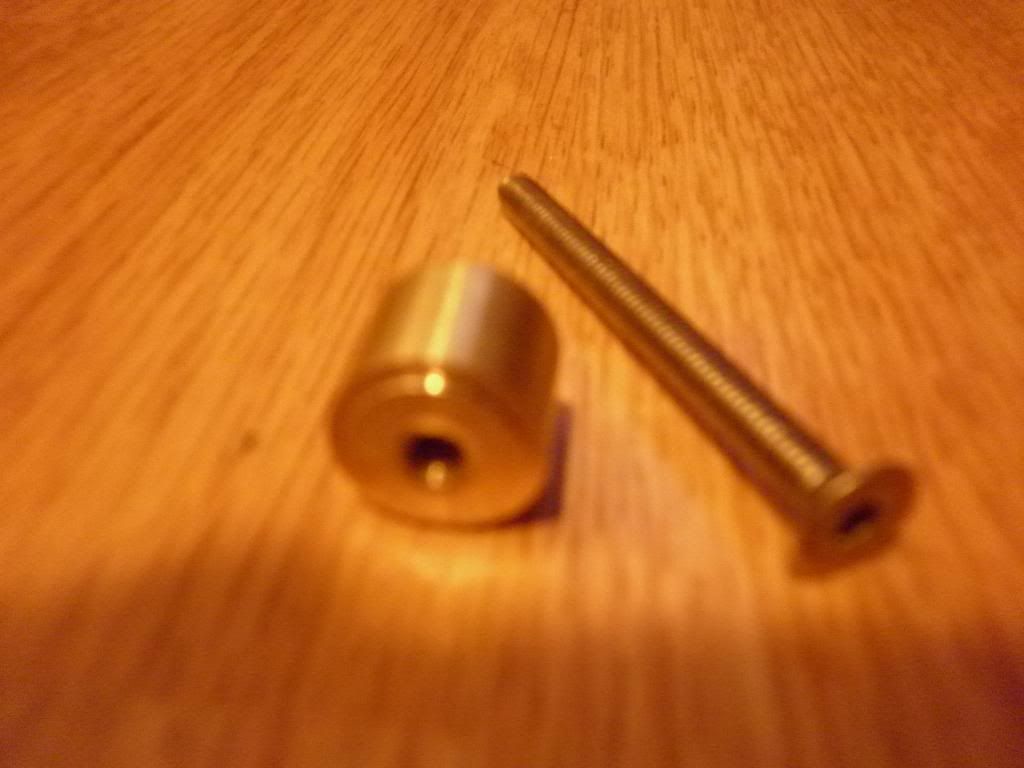

I am playing around with a lathe as well atm, inner bicep piston in brass, a bit smaller than the resin version supplied with the suit,

1/22/2014, 1:43 pm Link to this post Send Email to Forest trooper   Send PM to Forest trooper Blog
